CORRUGATED METAL SHEET BRACKETS
橙色线条2
B方案2
Product Parameters

Product Name: Corrugated metal sheet brackets

Product Material: AL6063

Surface Treatment: T5-A10

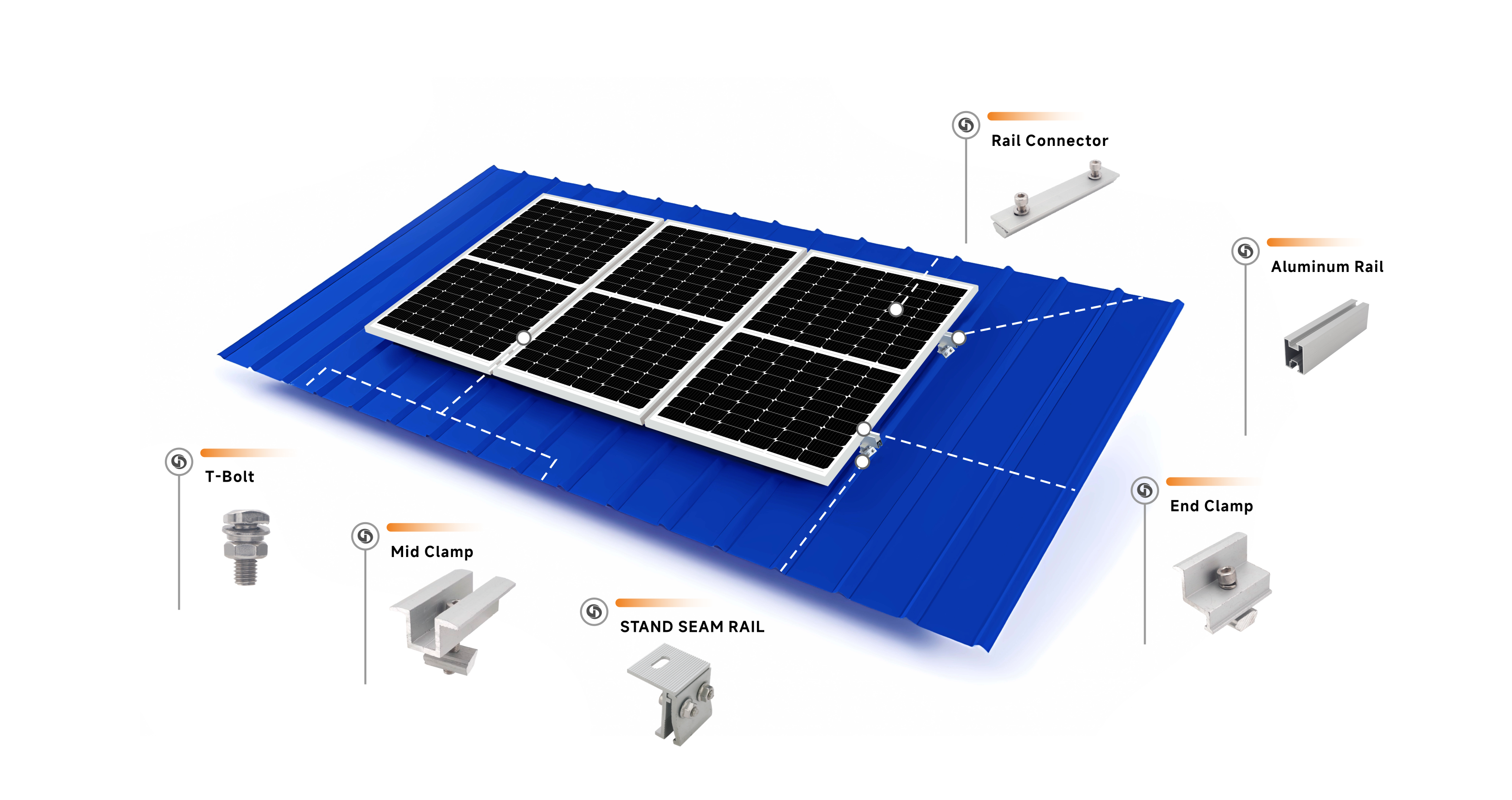

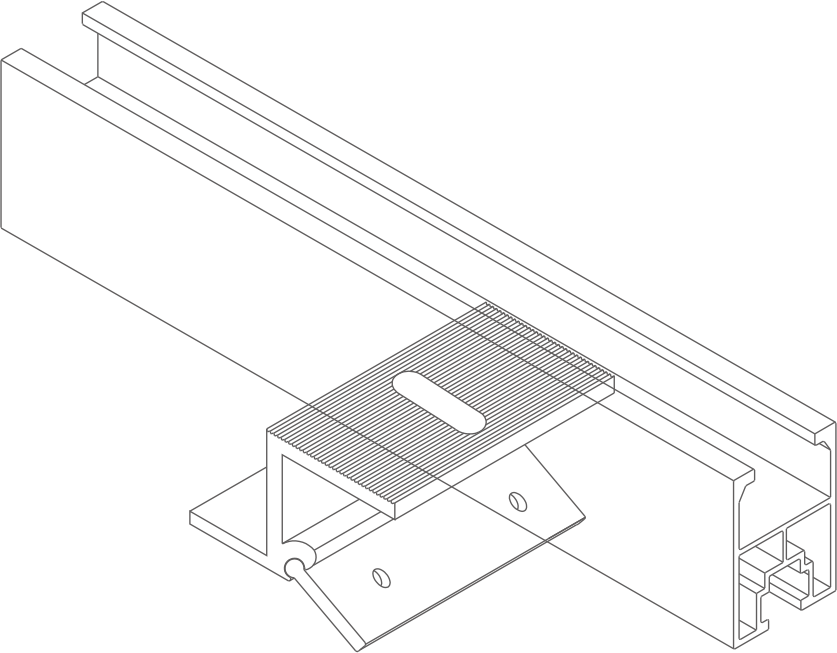

Structure Diagram Of The Bracket system
B方案2
* The final solution will be defined according to the project condition
Solution Accessories
1

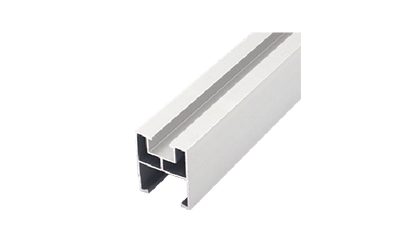

35*28 Rail
2

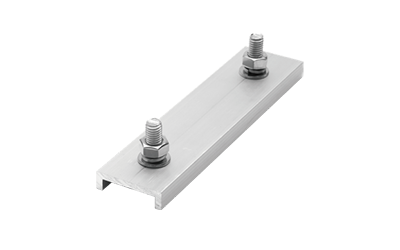

35*28 Splice
3

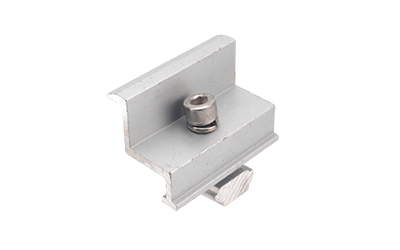

End Clamp with Slider
4

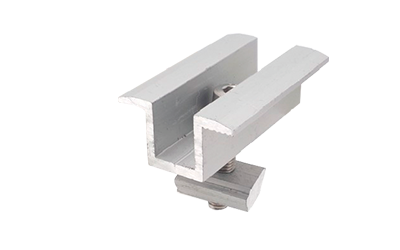

Mid Clamp with Set
5

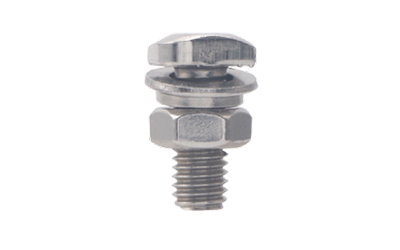

T-Bolt
6

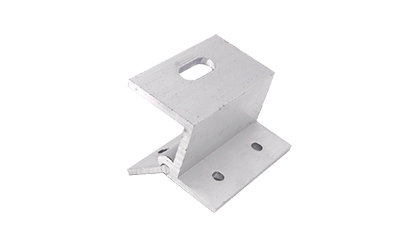

Universal T Clamp

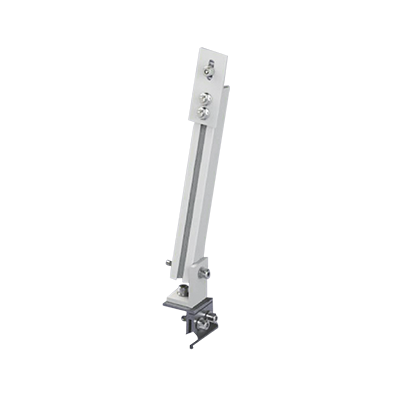

CORRUGATED SHEET METAL
BRACKETS-REAR COLUMN ADJUSTABLE
Product Parameters
Product Name:
Corrugated sheet metal brackets-rear column adjustable

Product Material:
AL6063-T5

Surface Treatment:
Anodizing AA15
橙色线条2
B方案3

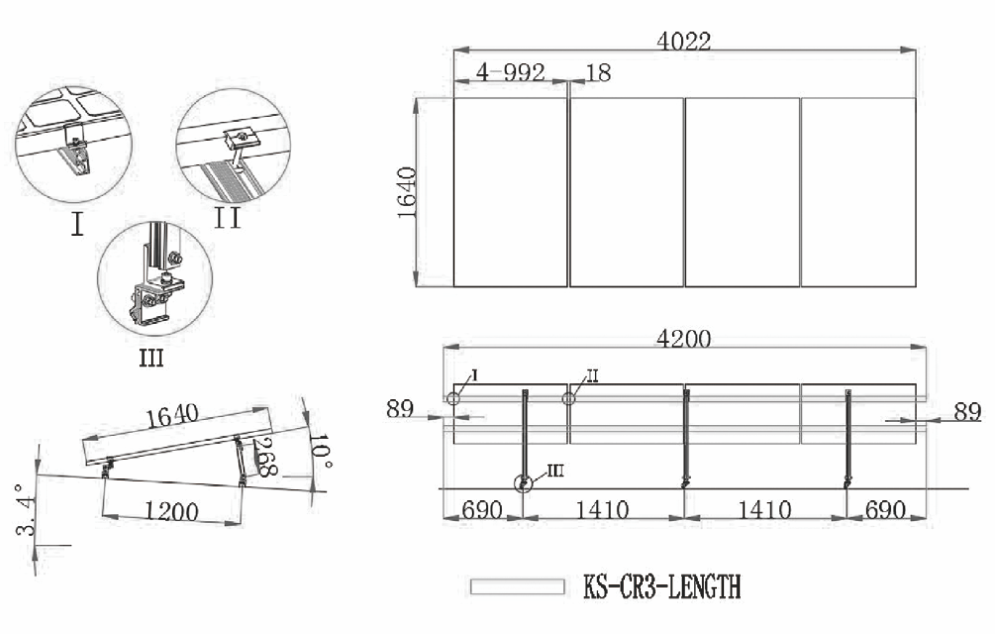

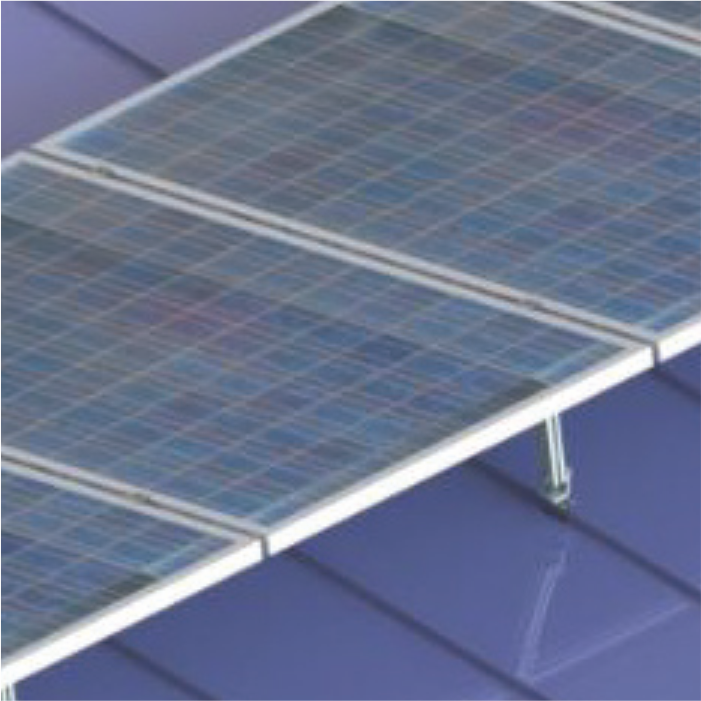

Structure Diagram Of The Bracket system
B方案3
* The final solution will be defined according to the project condition
Solution Accessories
1
2
3
